U-Drain
THE ULTIMATE DRAINAGE
SOLUTION FOR AGRICULTURAL
BUILDINGS
As an authorized U-Drain dealer, Zak’s appreciates your interest in this superior drainage system. Designed to address the unique needs of both agricultural and commercial buildings U-Drain features a pre-engineered slotted-trench design with an easily accessible sump, eliminating the need for grates that can bend and buckle over time. Unlike traditional drainage systems, U-Drain requires far less maintenance and is especially suited for heavy, high traffic applications.
U-Drain is the most cost effective, low maintenance drain system on today’s market. We carry U-Drain in stock. If you need it in a hurry, get in touch.
No Grates
The U-Drain slot system eliminates the issues associated with traditional drainage grates. It maintains a sleek, level, and low profile, ensuring a smooth surface after installation.
Low Maintenance
Cleaning U-Drain is simple. A paddle with a rounded blade slides into the slotted track, sweeping debris to the sump for easy removal. There are no grates to remove or replace.
Cost Effective
U-Drain provides long-term savings with its quick installation, easy maintenance, and durable materials. It is a cost-effective alternative to traditional grated drainage systems.
Easy Installation

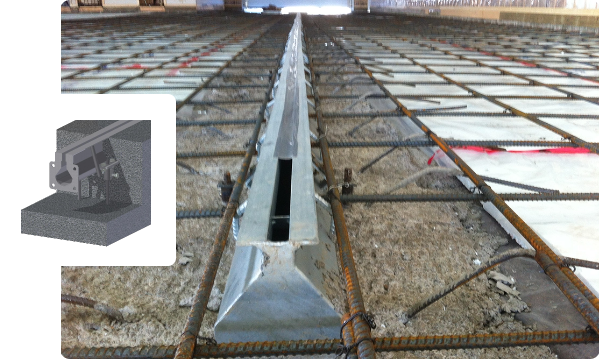

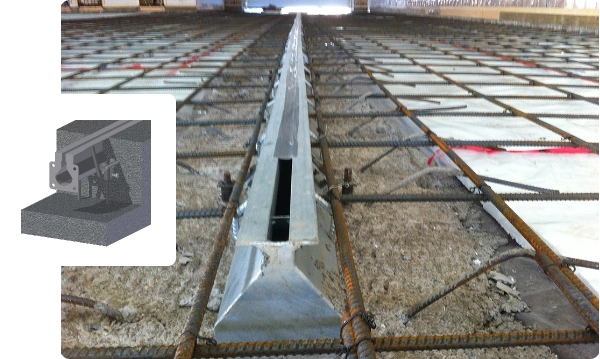

The U-Drain system is designed for straightforward assembly. Each length has a welded flange plate with laser-cut letters for quick and accurate connections. The system includes special adapter plates for sump connections and easy anchors for rebar grids, saving time during installation.
Sumps and Accessories
U-Drain offers various sump options and accessories to customize your drainage solution. Residential sumps come in one size with single or double inlets, while commercial sumps offer single, double, or triple inlets. Additional accessories include oil separator sumps, silt strainers, sump baskets, flush nozzles, cleaning paddles, and various lid options.
Structural Integrity

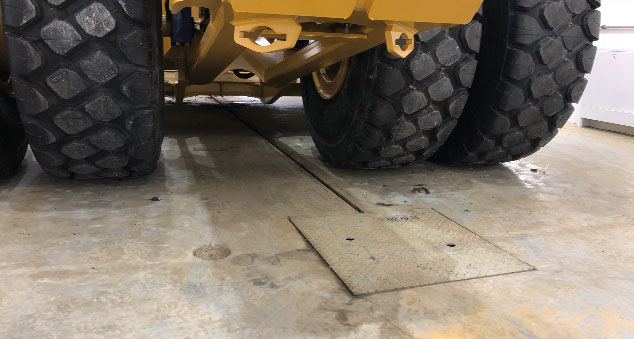

Constructed from galvanized and stainless steel, U-Drain is built to last. It channels weight loads into the surrounding concrete, making it suitable for heavy-duty use, including airport traffic. The system is CSA and ASME-certified, with a safe live load capacity exceeding 10,000 lbs. or 1,040 psi. The zinc galvanizing and stainless-steel finish provide excellent protection against bacteria, rust, and corrosion.
Versatility
U-Drain is ideal for a wide range of agricultural, residential, and commercial applications. The ag/commercial system features ten-foot lengths with pre-sloped bottoms for efficient drainage over long distances. Residential systems come in five-foot lengths, perfect for home garages, pools, driveways, and walkways. The U-Drain system is aesthetically pleasing to the eye because there is only one straight channel in the floor, slightly wider than a floor expansion joint.
